200CFM Mobile Air Compressor (Diesel) – Trailer

200CFM Mobile Air Compressor (Diesel) – Trailer

Tech Specs

Engine: 53hp Engine
Fuel Type: Diesel
Start Type: Electric Start
Fuel Tank Capacity (Litres): 66 L
Weight: 1 162kg
Rated Power: 40 kW
Pressure (Bar): 7 Bar
Pressure (PSI): 101 PSI
Maximum Service Pressure: 0.7 MPa
Volume Rate of Flow: 5.6 m³/min
Sound Output: 101 dB
Structure: Clamshell Structure Mounted on Trailer
Speed: 2700 RPM
Discharge Flow: 198 CFM
Dimensions (Excluding Trailer): 2296 mm x 1104 mm x 1007 mm
Tank Capacity: 75 L

Features:

• Precision Twin-Screw Rotor: Engineered for continuous operation with reduced wear for a longer service life.
• High-Efficiency Engine: Experience better fuel economy thanks to its 40 kW diesel engine designed for high torque at lower RPM.

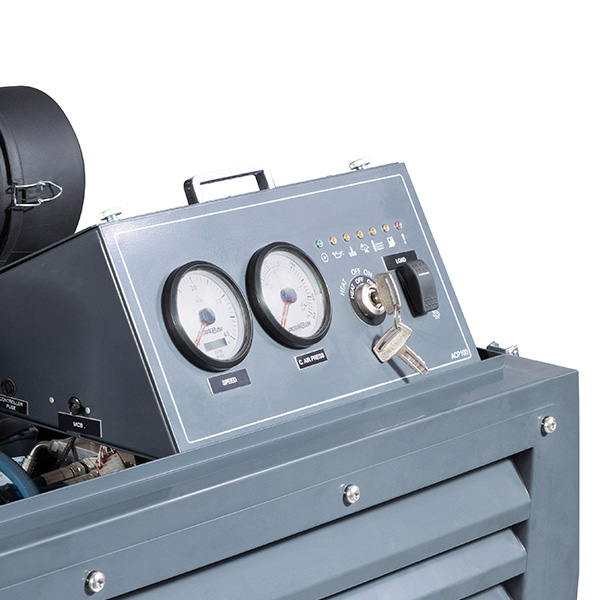

• Analogue Instrument Cluster: Monitor temperature, pressure and engine speed dependably using analogue displays; fewer computers, more reliability.
• Simplicity = Reliability: No PCs, screens, or digital components that can fail.
• Advanced Air Filtration: A two-stage air filtration system removes dust and particles, protecting your engine in harsh environments.
• Environmental Adaptability: IP54 galvanised steel canopy with thermal management for operation in extreme conditions (-25°C to 50°C).
• Robust, Reliable Trailer: Industrial-grade, optimised strength-to-weight ratio with a 2-ton axle and leaf-spring shock absorbers.
