Dumpy Level Complete Set (Dumpy Level, Adjustable Tripod & Measuring Staff) (Online Only)

R4 550.00

Incl. VAT

08DL04

Payfast

 Mobicred Once-off Application. One monthly instalment. Get up to R50 000 Credit.

Please click here to view our Returns & Refunds Policy – we always aim to provide a hassle free experience.

Wenbro offers a 12 month warranty covering any defects in materials or workmanship under normal use.
View our full Warranty terms here.

Get your products delivered within 3-7 working days.*

Shipping costs are calculated at checkout.

*Please note, some delivery timelines could be longer for larger products. Please check under the “Delivery” tab for more details.

You can collect your purchase from your nearest Wenbro branch. To find your nearest branch click here.

Delivery nationwide

In-store collection

12 month warranty

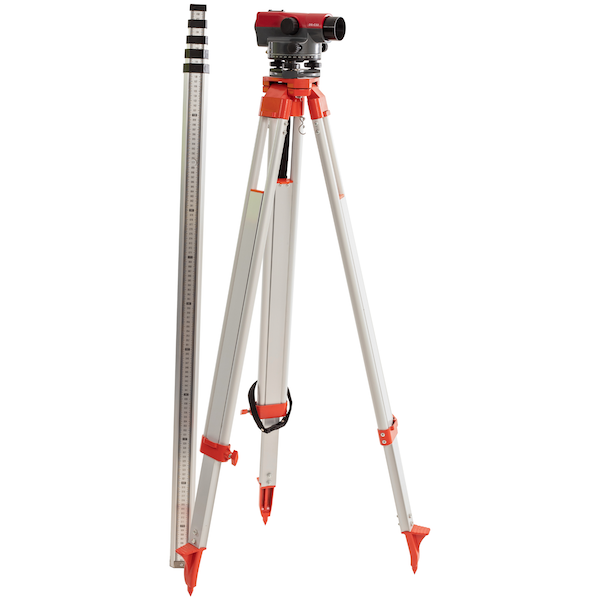

The Wenbro Dumpy Level Complete Set includes the Geodex DS-C32 dumpy level, an adjustable aluminium tripod, and a 5-section 5-metre aluminium measuring staff — everything needed to set up and start levelling immediately. With 32× magnification, IP54 water resistance, air damping (no batteries required), and working temperatures from -20°C to 50°C, the DS-C32 is a reliable, low-maintenance levelling instrument for construction, civil, and surveying work. Note: this bundle pricing is available for online purchases only — in-store purchases do not qualify for the package deal.

Applications

  • Setting out levels and heights on building foundations and floor slabs
  • Checking and establishing gradients on road construction and civil earthworks
  • Surveying and levelling for drainage, stormwater, and irrigation line installation
  • Height transfer and benchmark checking on multi-level construction projects
  • Land surveying, boundary checking, and site layout on development and subdivision projects

Specifications

Brand Geodex
Model DS-C32
Magnification 32x
Objective Aperture 40mm
Field of View 1°20′
Min. Focus Distance (Meters) 0.4m
Image Upright
Stadia Constant (Additive Constant) 0
Stadia Ratio (Multiplication Constant) 100
Sighting Aid (Sight) Gun Sight
Standard Deviation Per 1km (Double Run) 1.5mm
Damping Type Air Damping
Setting Accuracy (Standard Deviation) 0.3″
Compensator Working Range ±15′
Sensitivity (mm) 8’/2mm
Minimum Division 1°/1 gon
Circle Graduation 360° / 400 gon
Water Resistance IP54
Levelling Screw(Thread Size) M16 or 5/8″
Working Temperature -20°C ~ 50°C
Storage Temperature -40°C ~ 70°C
Net Weight 1.8kg
Extended Length 1600mm
Folded Length 950mm
Leg Segments 2 Segments per Leg
Lock Type Quick/Screw
Head Type Flat/Round
Head Outer 112mm
Head Inner 38mm
Net Weight 3.2kg
Materials Aluminium
Number of Sections 5
Fully Extended Length (m / mm) 5m / 5,000mm
Collapsed Length (m / mm) 1.3m
Visual Aid Yes – Bubble
Length Variance (Total) ‡2mm
Length Variance (per Meter) ‡0.5mm
Material Aluminium
Measurement Intervals (Front) 10mm (1cm)
Measurement Intervals (Back) 1mm
